Installation & Operation

Installation

PermaFLOW ™ has been designed to the dimensional specifications of a conventional P Trap for easy installation. It is compatible with both 11/2" and 11/4" drainage systems utilizing standard couplings and gaskets.

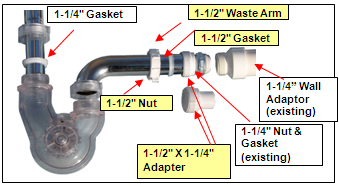

a.Kitchen Installation with 1-1/2” Sink Drain and 1-1/2” Wall Adapter



PermaFLOW Drain will retrofit into an existing P-trap installation. This figure shows the components needed to install into a system with a 1-1/2” wall adapter.

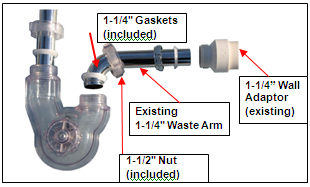

b. Bathroom Installation with 1-1/4” Sink Drain and 1-1/4” Wall Adapter



PermaFLOW™ Drain will retrofit into an existing P-trap installation. This figure shows the components needed to install into a system with a 1-1/4” wall adapter.
Note – Items in Yellow are not required if the wall adaptor is 1-1/2”

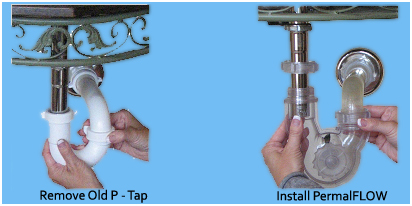

PermaFLOW® Drain can also be installed in a glue joint installation as shown below. Remove the old p-trap by cutting the drain pipe. Connect the slip joint end of the provided Adapter to the outlet side of PermaFLOW® and the other end to the drain pipe using an approved adhesive.

Note: If you have 1-1/4" piping on your bath lavatory, you can purchase the adapter kit shown in yellow at right from us or your local store (recommended install) or you can install the 1-1/4" gaskets provided as shown below

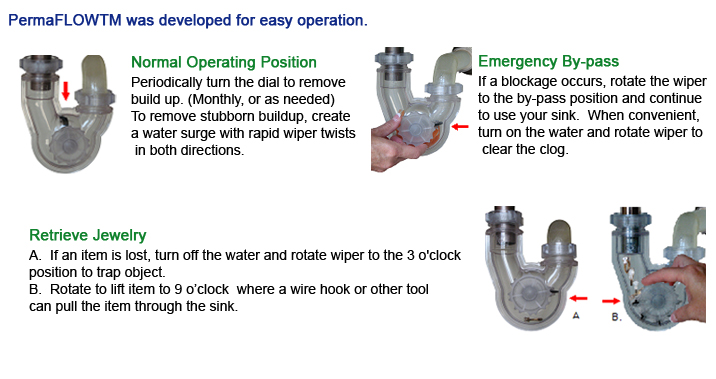

Operation

When used as recommended, PermaFLOW™ should help you eliminate the use of dangerous chemicals and reduce service calls related to clogged drains. PermaFLOW™ has many features to help you manage your drain system.

  • See to locate, prevent and solve problems
  • Self-cleaning design eliminates most buildup
  • Anyone can wipe to remove the worst clogs
  • Flow restored fast; no messy drain removal
  • Bypass option opens top chamber to flow
  • The wiper can be used to retrieve articles
  • Assists low flow, water conserving faucets to improve flow, reduce buildup, and save water
